2022 Airwolf YFR066 Base S-52
Build
700C/29 in × 28 mm
Insights
Average stack and reach vs trend of performance road bikes
Design deviates from other sizes of Airwolf YFR066
Stack and Reach vs. Category Trend
View all sizes

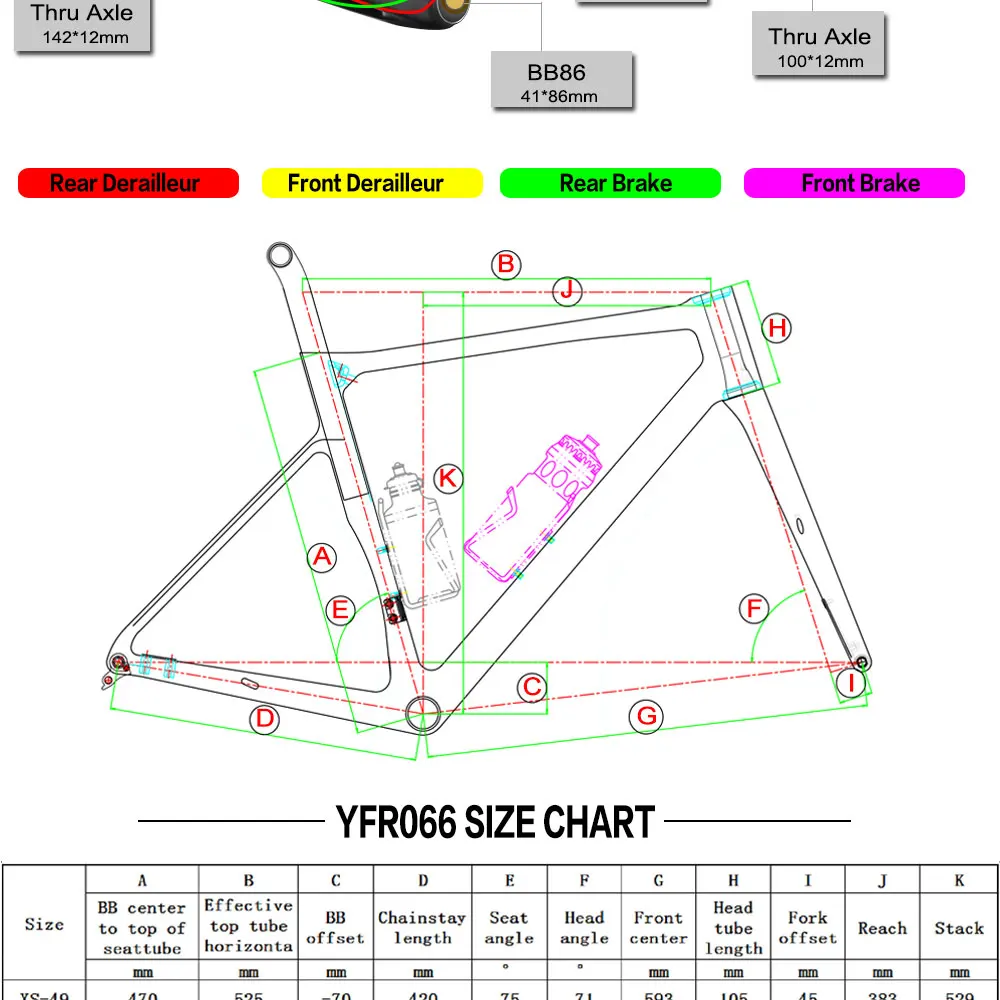

Geometry
| Stack | 552mm |
| Reach | 387mm |
| Stack to Reach Ratio | 1.43:1 |
| Seat Tube Length, C-T | 490mm |
| Top Tube Length, Effective/Horizontal Unknown | 540mm |
| Top Tube Slope | 8.8deg |
| Head Tube Angle | 72deg |
| Seat Tube Angle | 74.5deg |
| Head Tube Length | 125mm |
| Bottom Bracket Drop | 70mm |
| Bottom Bracket Height | 269mm |
| Chainstay Length | 420mm |
| Chainstay Length Horizontal | 414.1mm |
| Front-Center | 595mm |
| Front-Center Horizontal | 590.9mm |
| Wheelbase | 1005mm |
| Fork Offset/Rake | 45mm |
| Trail | 62.8mm mid/neutral |
| Mechanical Trail | 59.8mm |
| Wheel Flop | 18.5mm |
| Tire to Pedal Spindle Distance With 170 mm cranks | 86mm |
| Pedal Spindle to Ground Clearance With 170 mm cranks | 99mm |
Base Build
| Wheel Size | 700C, 29 inch (622mm BSD) |
| Tire Width | 28mm |
| Tire Outer Diameter | 678mm |
| Bike Length with Tires | 1683mm |
| Suspension Type | Rigid, non-suspension corrected |
| Bar Type | Aero Bar |
| Frame Material | Carbon/Composite |
| Fork Material | Carbon/Composite |
| Brake Type | Disc |
