2024 TIMETRY Gravel Gravel Base
- Category
- All-road/Gravel
- Design
- Drop Bar, Rigid, non-suspension corrected
- Frame
- Aluminum
- Fork
- Carbon/Composite
- Features
- Disc brake

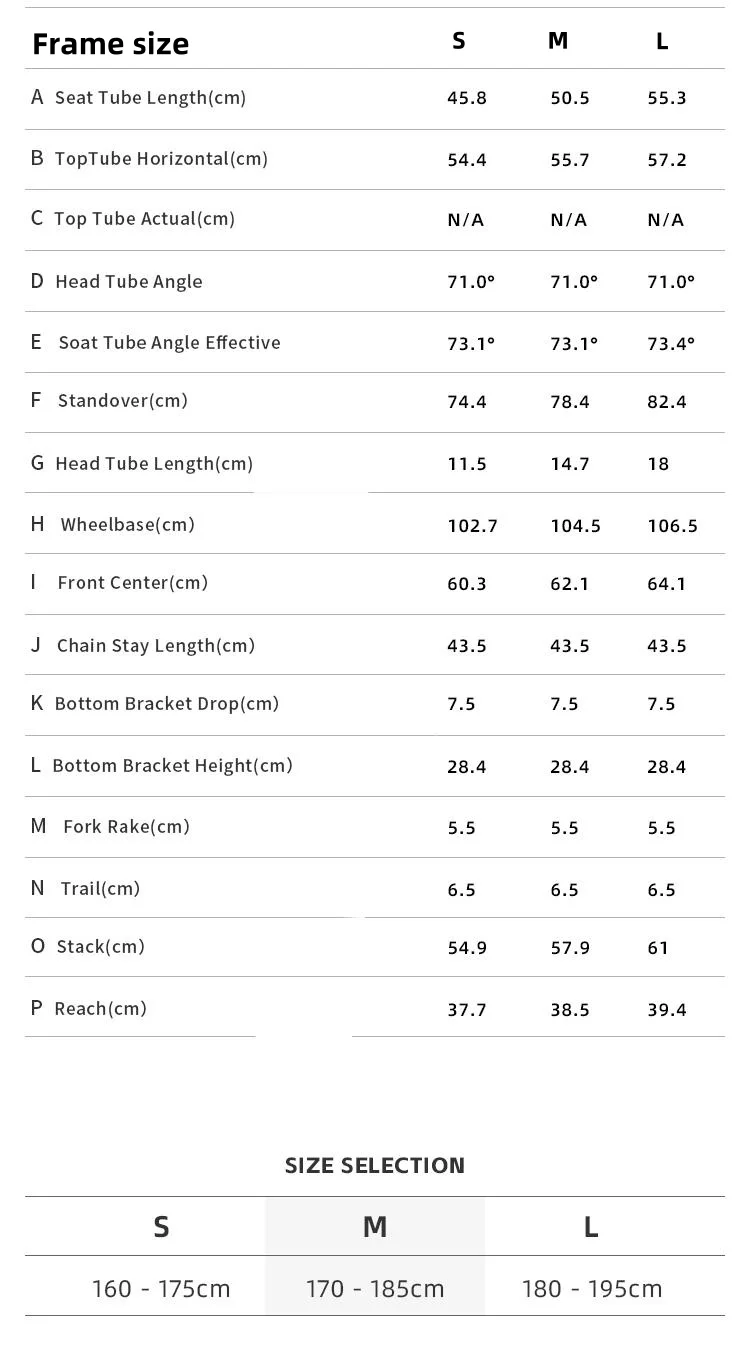

Geometry
XS | S | S | M | M | L | L | |
Stack | 518mm | 549mm | 549mm | 579mm | 579mm | 610mm | 610mm |
Reach | 368mm | 377mm | 377mm | 385mm | 385mm | 394mm | 394mm |
Stack to Reach Ratio | 1.41:1 | 1.46:1 | 1.46:1 | 1.5:1 | 1.5:1 | 1.55:1 | 1.55:1 |
Seat Tube Length, C-T | 410mm | 458mm | 458mm | 505mm | 505mm | 553mm | 553mm |
Top Tube Length, Effective/Horizontal Center | 533mm | 544mm | 544mm | 557mm | 557mm | 572mm | 572mm |
Top Tube Slope | 14.5deg | 12.3deg | 12.3deg | 10.2deg | 10.2deg | 8.3deg | 8.3deg |
Head Tube Angle | 70deg | 71deg | 71deg | 71deg | 71deg | 71deg | 71deg |
Seat Tube Angle | 73.1deg | 73.1deg | 73.1deg | 73.1deg | 73.1deg | 73.4deg | 73.4deg |
Head Tube Length | 86mm | 115mm | 115mm | 147mm | 147mm | 180mm | 180mm |
Bottom Bracket Drop | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm |
Bottom Bracket Height | 276mm | 276mm | 276mm | 276mm | 276mm | 276mm | 276mm |
Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
Chainstay Length Horizontal | 428.5mm | 428.5mm | 428.5mm | 428.5mm | 428.5mm | 428.5mm | 428.5mm |
Front-Center | 593mm | 603mm | 603mm | 621mm | 621mm | 641mm | 641mm |
Front-Center Horizontal | 587.5mm | 598.5mm | 598.5mm | 616.5mm | 616.5mm | 636.5mm | 636.5mm |
Wheelbase | 1016mm | 1027mm | 1027mm | 1045mm | 1045mm | 1065mm | 1065mm |
Fork Offset/Rake | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
Trail | 69.2mm high | 62.7mm mid/​neutral | 62.7mm mid/​neutral | 62.7mm mid/​neutral | 62.7mm mid/​neutral | 62.7mm mid/​neutral | 62.7mm mid/​neutral |
Mechanical Trail | 65.1mm | 59.3mm | 59.3mm | 59.3mm | 59.3mm | 59.3mm | 59.3mm |
Wheel Flop | 22.3mm | 19.3mm | 19.3mm | 19.3mm | 19.3mm | 19.3mm | 19.3mm |
Standover Height | 703mm | 744mm | 744mm | 784mm | 784mm | 824mm | 824mm |
Tire to Pedal Spindle | 72mm 170 mm cranks | 82mm 170 mm cranks | 82mm 170 mm cranks | 100mm 170 mm cranks | 100mm 170 mm cranks | 120mm 170 mm cranks | 120mm 170 mm cranks |
Pedal Spindle to Ground Clearance | 106mm 170 mm cranks | 106mm 170 mm cranks | 106mm 170 mm cranks | 106mm 170 mm cranks | 106mm 170 mm cranks | 106mm 170 mm cranks | 106mm 170 mm cranks |
Base Build
XS | S | S | M | M | L | L | |
Wheel Size | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD |
Tire Width | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
Tire Width Max | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm |
Tire Outer Diameter | 702mm | 702mm | 702mm | 702mm | 702mm | 702mm | 702mm |
Bike Length with Tires | 1718mm | 1729mm | 1729mm | 1747mm | 1747mm | 1767mm | 1767mm |
Crank Length | — | 170mm | 170mm | 170mm | 170mm | 170mm | 170mm |
Handlebar Width | — | 400mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Published Sizing Recommendations
Height | — | 160 cm to 175 cm | 160 cm to 175 cm | 170 cm to 185 cm | 170 cm to 185 cm | 180 cm to 195 cm | 180 cm to 195 cm |
Stack and Reach vs. Category Trend
Very Upright
Somewhat Upright
Average
Somewhat Aggressive
Very Aggressive
The Bike Insights Upright/Aggressive scale is based on analysis of a bike’s proportions relative to similar sized bikes in the same category.
Learn more about the Upright/Aggressive ScaleCategory Trend
