2010 Visp TRX 790 Base
- Category
- Track/Fixed-gear
- Design
- Drop Bar, Rigid, non-suspension corrected
- Frame
- Aluminum
- Fork
- Aluminum
- Features
- Rim brake

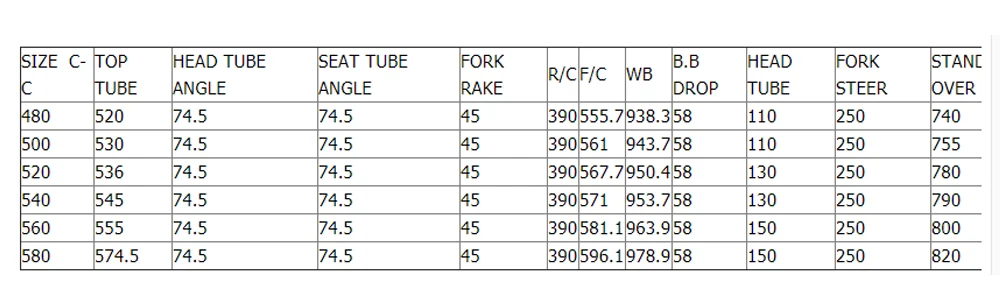

Geometry
48 | 50 | 52 | 54 | 56 | 58 | |
Stack | 496.3mm | 515.5mm | 534.8mm | 554.1mm | 573.4mm | 592.6mm |
Reach | 382.4mm | 387mm | 387.7mm | 391.3mm | 396mm | 410.2mm |
Stack to Reach Ratio | 1.3:1 | 1.33:1 | 1.38:1 | 1.42:1 | 1.45:1 | 1.44:1 |
Seat Tube Length, C-C | 480mm | 500mm | 520mm | 540mm | 560mm | 580mm |
Top Tube Length, Effective/Horizontal Center | 520mm | 530mm | 536mm | 545mm | 555mm | 574.5mm |
Top Tube Length, Actual C-C | 520mm | 530mm | 536mm | 545mm | 555mm | 574.5mm |
Top Tube Slope | 0deg | 0deg | 0deg | 0deg | 0deg | 0deg |
Head Tube Angle | 74.5deg | 74.5deg | 74.5deg | 74.5deg | 74.5deg | 74.5deg |
Seat Tube Angle | 74.5deg | 74.5deg | 74.5deg | 74.5deg | 74.5deg | 74.5deg |
Head Tube Length | 110mm | 110mm | 130mm | 130mm | 150mm | 150mm |
Bottom Bracket Drop | 58mm | 58mm | 58mm | 58mm | 58mm | 58mm |
Bottom Bracket Height | 278mm | 278mm | 278mm | 278mm | 278mm | 278mm |
Chainstay Length | 390mm | 390mm | 390mm | 390mm | 390mm | 390mm |
Chainstay Length Horizontal | 385.7mm | 385.7mm | 385.7mm | 385.7mm | 385.7mm | 385.7mm |
Front-Center | 555.7mm | 561mm | 567.7mm | 571mm | 581.1mm | 596.1mm |
Front-Center Horizontal | 552.6mm | 558mm | 564.7mm | 568mm | 578.2mm | 593.2mm |
Wheelbase | 938.3mm | 943.7mm | 950.4mm | 953.7mm | 963.9mm | 978.9mm |
Fork Offset/Rake | 45mm | 45mm | 45mm | 45mm | 45mm | 45mm |
Trail | 46.5mm mid/neutral | 46.5mm mid/neutral | 46.5mm mid/neutral | 46.5mm mid/neutral | 46.5mm mid/neutral | 46.5mm mid/neutral |
Mechanical Trail | 44.8mm | 44.8mm | 44.8mm | 44.8mm | 44.8mm | 44.8mm |
Wheel Flop | 12mm | 12mm | 12mm | 12mm | 12mm | 12mm |
Standover Height | 740mm | 755mm | 780mm | 790mm | 800mm | 820mm |
Tire to Pedal Spindle | 49.7mm 170 mm cranks | 55mm 170 mm cranks | 61.7mm 170 mm cranks | 70mm 165 mm cranks | 75.1mm 170 mm cranks | 90.1mm 170 mm cranks |
Pedal Spindle to Ground Clearance | 108mm 170 mm cranks | 108mm 170 mm cranks | 108mm 170 mm cranks | 113mm 165 mm cranks | 108mm 170 mm cranks | 108mm 170 mm cranks |
Base Build
48 | 50 | 52 | 54 | 56 | 58 | |
Wheel Size | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD |
Tire Width | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm |
Tire Width Max | 28mm | 28mm | 28mm | 28mm | 28mm | 28mm |
Tire Outer Diameter | 672mm | 672mm | 672mm | 672mm | 672mm | 672mm |
Bike Length with Tires | 1610.3mm | 1615.7mm | 1622.4mm | 1625.7mm | 1635.9mm | 1650.9mm |
Crank Length | — | — | — | 165mm | — | — |
Handlebar Width | — | — | — | 400mm | — | — |
Stem Length | — | — | — | 110mm | — | — |
Stack and Reach vs. Category Trend
Very Upright
Somewhat Upright
Average
Somewhat Aggressive
Very Aggressive
The Bike Insights Upright/Aggressive scale is based on analysis of a bike’s proportions relative to similar sized bikes in the same category.
Learn more about the Upright/Aggressive ScaleCategory Trend
Track/Fixed-gearSource:https://ae01.alicdn.com/kf/Hb3bf43a1629b452cbaa79250fcc0d5ace.jpg
