2023 Lexon Reverse Base
- Category
- Hardtail Cross-country MTB
- Design
- Flat Bar, Hardtail (Front suspension)
- Frame
- Carbon/Composite
- Suspension
- 110mm fork travel
- Features
- Disc brake
Somewhat upright stack and reachvs category Suspension sag unknown Geometry may mis-represent actual riding geometry | Somewhat upright stack and reachvs category Suspension sag unknown Geometry may mis-represent actual riding geometry | Somewhat upright stack and reachvs category Suspension sag unknown Geometry may mis-represent actual riding geometry | Somewhat upright stack and reachvs category Suspension sag unknown Geometry may mis-represent actual riding geometry |

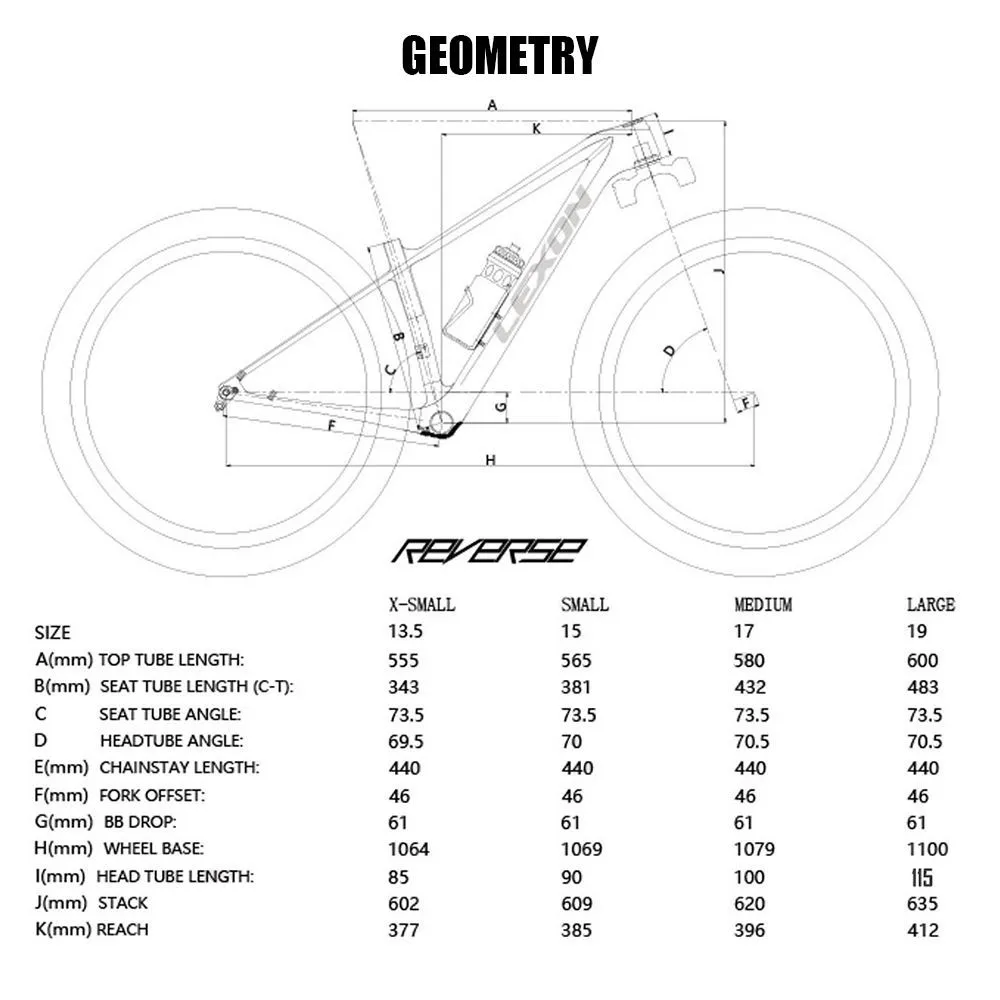

Geometry
XS | S | M | L | |
Stack | 602mm | 609mm | 620mm | 635mm |
Reach | 377mm | 385mm | 396mm | 412mm |
Stack to Reach Ratio | 1.6:1 | 1.58:1 | 1.57:1 | 1.54:1 |
Seat Tube Length, C-T | 343mm | 381mm | 432mm | 483mm |
Top Tube Length, Effective/Horizontal Center | 555mm | 565mm | 580mm | 600mm |
Top Tube Slope | 29.9deg | 26.3deg | 21.6deg | 17.4deg |
Head Tube Angle | 69.5deg | 70deg | 70.5deg | 70.5deg |
Seat Tube Angle | 73.5deg | 73.5deg | 73.5deg | 73.5deg |
Head Tube Length | 85mm | 90mm | 100mm | 115mm |
Bottom Bracket Drop | 61mm | 61mm | 61mm | 61mm |
Bottom Bracket Height | 311mm | 311mm | 311mm | 311mm |
Chainstay Length | 440mm | 440mm | 440mm | 440mm |
Chainstay Length Horizontal | 435.8mm | 435.8mm | 435.8mm | 435.8mm |
Front-Center | 631.2mm | 636.2mm | 646.1mm | 667mm |
Front-Center Horizontal | 628.3mm | 633.3mm | 643.3mm | 664.3mm |
Wheelbase | 1064mm | 1069mm | 1079mm | 1100mm |
Fork Offset/Rake | 46mm | 46mm | 46mm | 46mm |
Trail | 90mm very high | 86.4mm very high | 82.9mm very high | 82.9mm very high |
Mechanical Trail | 84.3mm | 81.2mm | 78.2mm | 78.2mm |
Wheel Flop | 29.5mm | 27.8mm | 26.1mm | 26.1mm |
Tire to Pedal Spindle | 89.2mm 170 mm cranks | 94.2mm 170 mm cranks | 104.2mm 170 mm cranks | 125.1mm 170 mm cranks |
Pedal Spindle to Ground Clearance | 141mm 170 mm cranks | 141mm 170 mm cranks | 141mm 170 mm cranks | 141mm 170 mm cranks |
Base Build
XS | S | M | L | |
Wheel Size | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD | 700C/29 in 622 mm BSD |
Tire Width | 2.4in | 2.4in | 2.4in | 2.4in |
Tire Width Max | 2.4in | 2.4in | 2.4in | 2.4in |
Tire Outer Diameter | 743.9mm | 743.9mm | 743.9mm | 743.9mm |
Bike Length with Tires | 1807.9mm | 1812.9mm | 1822.9mm | 1843.9mm |
Stack and Reach vs. Category Trend
Very Upright
Somewhat Upright
Average
Somewhat Aggressive
Very Aggressive
The Bike Insights Upright/Aggressive scale is based on analysis of a bike’s proportions relative to similar sized bikes in the same category.
Learn more about the Upright/Aggressive ScaleCategory Trend
Hardtail Cross-country MTBSource:https://ir.ozone.ru/s3/multimedia-s/wc1000/6757968052.jpg
