2022 Rockrider EXLP 540 Base

Category
Rigid MTB
Design
Flat Bar, Hardtail (Front suspension)
Frame
Aluminum
Suspension
120mm fork travel
Features
Disc brake
Somewhat upright stack and reachvs category
Suspension sag unknown
Geometry may mis-represent actual riding geometry
Somewhat upright stack and reachvs category
Suspension sag unknown
Geometry may mis-represent actual riding geometry
Somewhat upright stack and reachvs category
Suspension sag unknown
Geometry may mis-represent actual riding geometry
Average stack and reachvs category
Suspension sag unknown
Geometry may mis-represent actual riding geometry
Average stack and reachvs category
Suspension sag unknown
Geometry may mis-represent actual riding geometry
Average stack and reachvs category
Suspension sag unknown
Geometry may mis-represent actual riding geometry
Somewhat upright stack and reachvs category
Suspension sag unknown
Geometry may mis-represent actual riding geometry

Geometry

Medium
Medium
Medium
Large
Large
Large
XL
Stack
630mm
630mm
630mm
630mm
630mm
630mm
659mm
Reach
425mm
425mm
425mm
450mm
450mm
450mm
471mm
Stack to Reach Ratio
1.48:1
1.48:1
1.48:1
1.4:1
1.4:1
1.4:1
1.4:1
Seat Tube Length, C-T
400mm
400mm
400mm
430mm
430mm
430mm
—
Seat Tube Length, Effective Center
—
—
—
—
—
—
460mm
Top Tube Length, Effective/Horizontal Center
—
—
—
—
—
—
672mm
Top Tube Length, Effective/Horizontal HT Top
618mm
618mm
618mm
642mm
642mm
642mm
—
Top Tube Slope
24.5deg
24.5deg
24.5deg
20.8deg
20.8deg
20.8deg
—
Head Tube Angle
68deg
68deg
68deg
68deg
68deg
68deg
68deg
Seat Tube Angle
73deg
73deg
73deg
73deg
73deg
73deg
73deg
Head Tube Length
100mm
100mm
100mm
100mm
100mm
100mm
131mm
Bottom Bracket Drop
62mm
62mm
62mm
62mm
62mm
62mm
62mm
Bottom Bracket Height
305mm
307.4mm
307.4mm
305mm
307.4mm
307.4mm
307.4mm
Chainstay Length
441mm
441mm
441mm
441mm
441mm
441mm
—
Chainstay Length Horizontal
436.6mm
436.6mm
436.6mm
436.6mm
436.6mm
436.6mm
441mm
Front-Center
713.1mm
713.1mm
713.1mm
737mm
737mm
737mm
764.5mm
Front-Center Horizontal
710.4mm
710.4mm
710.4mm
734.4mm
734.4mm
734.4mm
762mm
Wheelbase
1147mm
1147mm
1147mm
1171mm
1171mm
1171mm
1203mm
Fork Offset/Rake
51mm
51mm
51mm
51mm
51mm
51mm
51mm
Fork Length, Unknown
530mm
530mm
530mm
530mm
530mm
530mm
—
Trail
93.3mm
very high
94.3mm
very high
94.3mm
very high
93.3mm
very high
94.3mm
very high
94.3mm
very high
94.3mm
very high
Mechanical Trail
86.5mm
87.4mm
87.4mm
86.5mm
87.4mm
87.4mm
87.4mm
Wheel Flop
32.4mm
32.7mm
32.7mm
32.4mm
32.7mm
32.7mm
32.7mm
Tire to Pedal Spindle
171.1mm
175 mm cranks
168.7mm
175 mm cranks
168.7mm
175 mm cranks
195mm
175 mm cranks
192.6mm
175 mm cranks
192.6mm
175 mm cranks
220.1mm
175 mm cranks
Pedal Spindle to Ground Clearance
130mm
175 mm cranks
132.4mm
175 mm cranks
132.4mm
175 mm cranks
130mm
175 mm cranks
132.4mm
175 mm cranks
132.4mm
175 mm cranks
132.4mm
175 mm cranks

Base Build

Medium
Medium
Medium
Large
Large
Large
XL
Wheel Size
700C/29 in
622 mm BSD
700C/29 in
622 mm BSD
700C/29 in
622 mm BSD
700C/29 in
622 mm BSD
700C/29 in
622 mm BSD
700C/29 in
622 mm BSD
700C/29 in
622 mm BSD
Tire Width
56mm
2.3in
2.3in
56mm
2.3in
2.3in
2.3in
Tire Outer Diameter
734mm
738.8mm
738.8mm
734mm
738.8mm
738.8mm
738.8mm
Bike Length with Tires
1881mm
1885.8mm
1885.8mm
1905mm
1909.8mm
1909.8mm
1941.8mm
Crank Length
175mm
175mm
175mm
175mm
175mm
175mm
175mm
Handlebar Width
740mm
740mm
740mm
740mm
740mm
740mm
740mm
Stem Length
60mm
60mm
60mm
60mm
60mm
60mm
60mm

Stack and Reach vs. Category Trend

Very Upright
Somewhat Upright
Average
Somewhat Aggressive
Very Aggressive

The Bike Insights Upright/Aggressive scale is based on analysis of a bike’s proportions relative to similar sized bikes in the same category.

Learn more about the Upright/Aggressive Scale
Category Trend
Rigid MTB

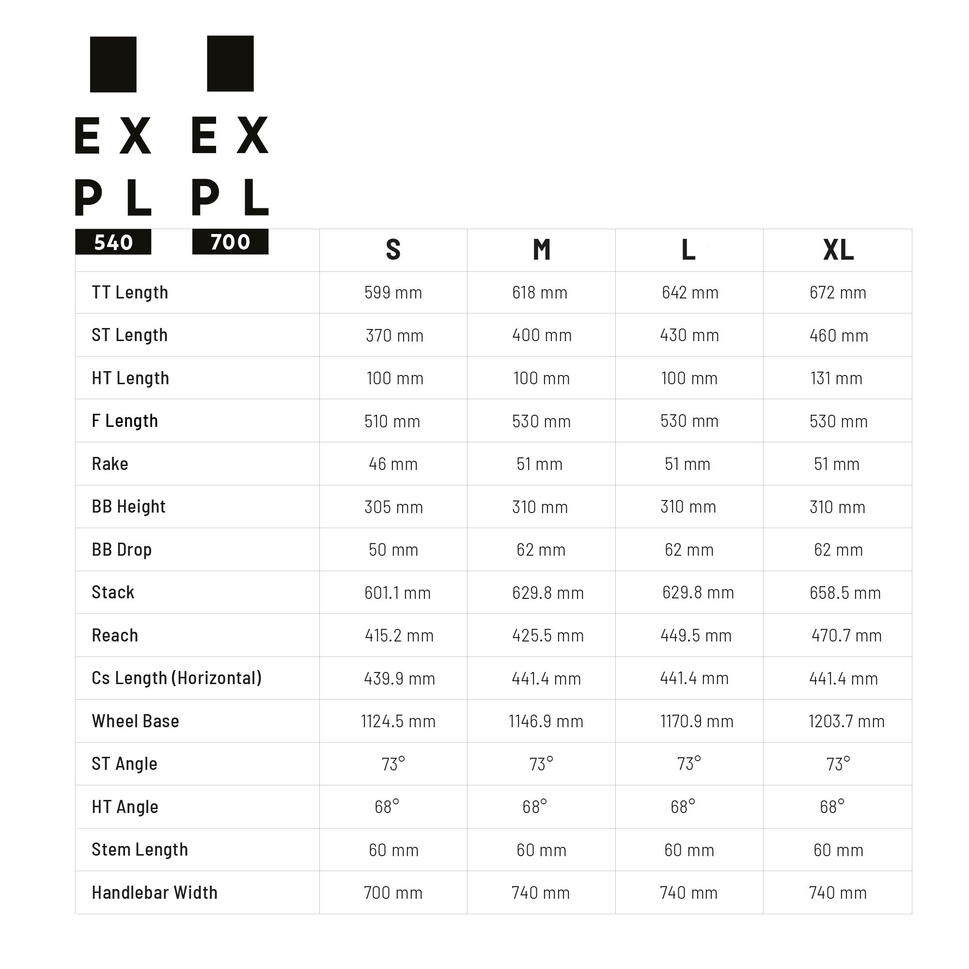

Source:https://contents.mediadecathlon.com/p2029083/k$90694049e10e74a4ac70dae4c76c93fb/sq/mtb-kerekpar-exlp-540-29-kek-fekete.jpg?format=auto&f=969x969, https://www.decathlon.fr/p/velo-vtt-randonnee-explore-540-bleu-noir-29/_/R-p-329414?mc=8607120&c=bleu_turquoise
